FS1203 Small Recessed Butterfly Latch​ With Padlock

  • Small Recessed Road Case Latch with Padlock;
  • 3/8″ Deep Shallow Dish;

Descripción

The FS1203 Small Recessed Butterfly Latch is a compact yet secure twist latch hardware solution designed for small flight cases, road cases, and portable equipment boxes. Featuring an offset design and a 3/8″ deep shallow dish, it offers a low-profile fit that reduces snagging while protecting the latch mechanism.

Equipped with a padlock bracket, the FS1203 allows for enhanced security when needed. It includes Φ5mm mounting holes and measures 77 × 82mm, making it ideal for lightweight to medium-duty cases that require both accessibility and protection.

Key Features:

  • Product Code: FS1203

  • Type: Small recessed butterfly twist latch with offset

  • Dish Depth: 3/8″ shallow dish – low profile and snag-resistant

  • Locking: Padlockable for extra security

  • Hole Size: Φ5mm

  • Overall Size: 77 × 82mm

  • Applications: Small flight cases, road cases, instrument cases, storage boxes

The FS1203 is the perfect choice for case builders and repair projects seeking a compact, secure, and professional-grade twist latch hardware component.

Small Recessed Latch

Part NumberDrawingFinishLockableOffset
FS1202FS1202 Small Recessed Road Case LatchChromeNoNO
FS1203Small recessed butterfly latch with padlock in detailed CAD drawingChromePadlockableNO
FS110682x77mm Small Recessed Butterfly Twist Latch FS-1106ChromeNoNO
FS1204FS1204 Small Recessed Latches With PadlockChromePadlockableNO
FS1105Small recessed butterfly twist latch with padlockable feature FS1105 CAD drawingChromePadlockableNO

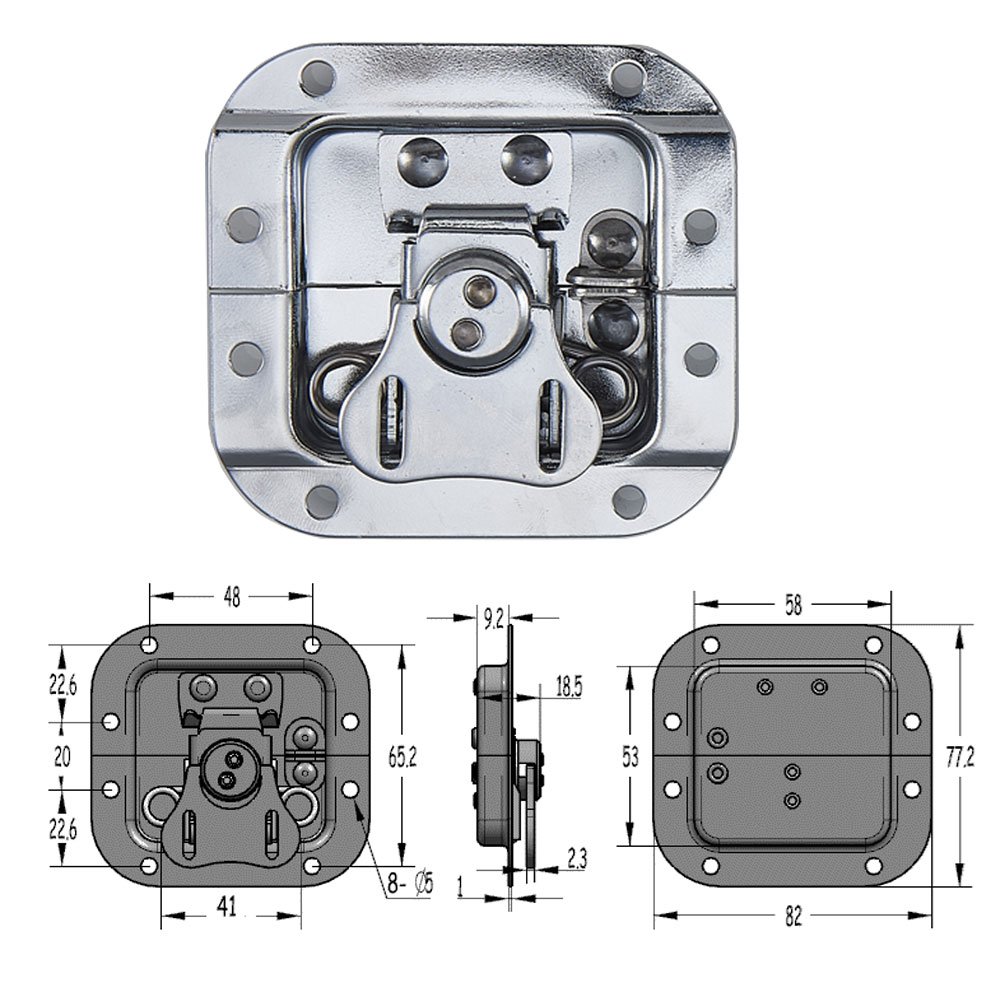

FS1203 Detailed CAD Drawings

FS1203 Detailed CAD Drawings

其他信息

Material

Lockable

Padlockable

Mounting Holes

10

Surface treatment

, ,

Latch Type

Recessed Latch

with Offset

Yes

Size

Small
